| ISG型系列單級管道離心泵性能參數表（2） |
|
點擊次數：7467 來源網站：vip93338.com 發布時間：2013-09-11 |
|

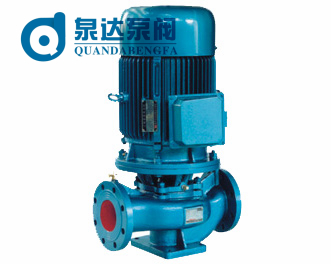

管道離心泵中需求較多的ISG型系列單級管道離心泵，是永嘉縣泉達泵閥制造有限公司科技人員聯合國內水泵專家選用國內優秀水力模型，采用IS型離心泵之性能參數，在一般立式泵的基礎上進行巧妙組合設計而成，同時根據使用溫度、介質等不同在ISG型基礎上派生出適用熱水、高溫、腐蝕性化工泵、油泵。管道離心泵系列產品具有高效節能、噪音低、性能可靠等優點。
ISG型系列單級管道離心泵性能參數表
|
型 號
|
流量Q
|
揚程
H
(m)
|
效率
η
(%)
|
電機功率
P
(KW)
|
轉速
n
(r/min)
|
必需汽
蝕余量
(NPAH)r
(m)
|
重量
(kg)
|
|
(m3/h)
|
(L/s)
|
|
40-125(I) |
8.8
|
2.44
|
21.2
|
49
|
1.5
|
2900
|
2.3
|
40
|
|
12.5
|
3.47
|
20
|
58
|
|
16.3
|
4.53
|
17.8
|
57
|
|
40-125(I)A |
8
|
2.22
|
17
|
48
|
1.1
|
2900
|
2.3
|
35
|
|
11
|
3.05
|
16
|
57
|
|
14.5
|
4.03
|
14
|
56
|
|
40-160(I) |
8.8
|
2.44
|
33
|
45
|
3.0
|
2900
|
2.3
|
58
|
|
12.5
|
3.47
|
32
|
52
|
|
16.3
|
4.53
|
30
|
51
|
|
40-160(I)A |
8.2
|
2.28
|
29
|
44
|
2.2
|
2900
|
2.3
|
49
|
|
11.7
|
3.25
|
28
|
51
|
|
15.2
|
4.22
|
26
|
50
|
|
40-160(I)B |
7.3
|
2.38
|
23
|
50
|
1.5
|
2900
|
2.3
|
44
|
|
10.4
|
2.89
|
22
|
|
13.5
|
3.75
|
20.5
|
|
40-200(I) |
8.8
|
2.44
|
51.2
|
38
|
5.5
|
2900
|
2.3
|
87
|
|
12.5
|
3.47
|
50
|
46
|
|
16.3
|
4.53
|
48
|
46
|
|
40-200(I)A |
8.3
|
2.31
|
45
|
37
|
4.0
|
2900
|
2.3
|
76
|
|
11.7
|
3.25
|
44
|
45
|
|
15.3
|
4.25
|
42
|
45
|
|
40-200(I)B |
7.5
|
2.08
|
37
|
36
|
3.0
|
2900
|
2.3
|
65
|
|
10.5
|
2.92
|
36
|
44
|
|
13.8
|
3.83
|
34
|
44
|
|
40-250(I) |
8.8
|
2.44
|
81.2
|
31
|
11
|
2900
|
2.3
|
148
|
|
12.5
|
3.47
|
80
|
40
|
|
16.3
|
4.53
|
77.5
|
38
|
|
40-250(I)A |
8.2
|
2.28
|
71
|
30
|
7.5
|
2900
|
2.3
|
98
|
|
11.6
|
3.22
|
70
|
38
|
|
15.2
|
4.22
|
68
|
36
|
|
40-250(I)B |
7.6
|
2.11
|
61.4
|
29
|
7.5
|
2900
|
2.3
|
97
|
|
10.8
|
3.0
|
60
|
37
|
|
14
|
3.89
|
58
|
35
|
|
50-100 |
8.8
|
2.44
|
13.6
|
55
|
1.1
|
2900
|
2.3
|
38
|
|
12.5
|
3.47
|
12.5
|
62
|
|
16.3
|
4.53
|
11.3
|
60
|
|
50-100A |
8
|
2.22
|
11
|
54
|
0.75
|
2900
|
2.3
|
37
|
|
11
|
3.05
|
10
|
60
|
|
14.5
|
4.03
|
9
|
58
|
|
50-125 |
8.8
|
2.44
|
21.5
|
49
|
1.5
|
2900
|
2.3
|
44
|
|
12.5
|
3.47
|
20
|
58
|
|
16.3
|
4.53
|
17.8
|
57
|
|
50-125A |
8
|
2.22
|
17
|
48
|
1.1
|
2900
|
2.3
|
39
|
|
11
|
3.05
|
16
|
57
|
|
14.5
|
4.03
|
14
|
56
|
|
50-160 |
8.8
|
2.44
|
33
|
45
|
3.0
|
2900
|
2.3
|
60
|
|
12.5
|
3.47
|
32
|
52
|
|
16.3
|
4.53
|
30
|
51
|
|
50-160A |
8.2
|
2.28
|
29
|
44
|
2.2
|
2900
|
2.3
|
52
|
|
11.7
|
3.25
|
28
|
51
|
|
15.2
|
4.22
|
26
|
50
|
|
50-160B |
7.3
|
2.38
|
23
|
43
|
1.5
|
2900
|
2.3
|
48
|
|
10.4
|
2.89
|
22
|
50
|
|
13.5
|
3.75
|
20.5
|
49
|
|
50-200 |
8.8
|
2.44
|
52
|
38
|
5.5
|
2900
|
2.3
|
104
|
|
12.5
|
3.47
|
50
|
46
|
|
16.3
|
4.53
|
48
|
46
|
|
50-200A |
8.3
|
2.31
|
45.8
|
37
|
4.0
|
2900
|
2.3
|
82
|
|
11.7
|
3.25
|
44
|
45
|
|
15.3
|
4.25
|
42
|
45
|
|
50-200B |
7.5
|
2.08
|
37
|
38
|
3.0
|
2900
|
2.3
|
69
|
|
10.6
|
2.94
|
36
|
44
|
|
13.8
|
3.83
|
34
|
40
|
|
50-250 |
8.8
|
2.44
|
82
|
29
|
11
|
2900
|
2.3
|
163
|
|
12.5
|
3.47
|
80
|
40
|
|
16.3
|
4.53
|
77.5
|
38
|
|
50-250A |
8.2
|
2.28
|
71.5
|
28
|
7.5
|
2900
|
2.3
|
116
|
|
11.6
|
3.22
|
70
|
38
|
|
15.2
|
4.22
|
68
|
36
|
|
50-250B |
7.6
|
2.11
|
61.4
|
27
|
7.5
|
2900
|
2.3
|
114
|
|
10.8
|
3.0
|
60
|
37
|
|
14
|
3.89
|
58
|
35
|
|
50-100(I) |
17.5
|
4.86
|
13.7
|
67
|
1.5
|
2900
|
2.5
|
43
|
|
25
|
6.94
|
12.5
|
69
|
|
32.5
|
9.03
|
10.5
|
69
|
|
50-100(I)A |
15.6
|
4.3
|
11
|
65
|
1.1
|
2900
|
2.5
|
38
|
|
22.3
|
6.19
|
10
|
68
|
|
29
|
8.1
|
8.4
|
67
|
|
50-125(I) |
17.5
|
4.86
|
21.5
|
60
|
3
|
2900
|
2.5
|
58
|
|
25
|
6.94
|
20
|
68
|
|
32.5
|
9.03
|
18
|
57
|
|
50-125(I)A |
15.6
|
4.33
|
17
|
58
|
2.2
|
2900
|
2.5
|
50
|
|
22.3
|
6.19
|
16
|
66
|
|
29
|
8.1
|
13.6
|
65
|
|
50-160(I) |
17.5
|
4.86
|
34.4
|
54
|
4
|
2900
|
2.5
|
74
|
|
25
|
6.94
|
32
|
65
|
|
32.5
|
9.03
|
27.5
|
62
|
|
50-160(I)A |
16.4
|
4.56
|
30
|
54
|
4
|
2900
|
2.5
|
72
|
|
23.4
|
6.5
|
28
|
62
|
|
30.4
|
8.44
|
24
|
59
|
ISG型系列單級管道離心泵性能參數表
|
型 號
|
流量Q
|
揚程
H
(m)
|
效率
η
(%)
|
電機
功率
P
(KW)
|
轉速
n
(r/min)
|
必需汽
蝕余量
(NPAH)r
(m)
|
重量
(kg)
|
|
(m3/h)
|
(L/s)
|
|
50-160(I) |
15.0
|
4.17
|
26
|
51
|
3
|
2900
|
2.5
|
61
|
|
21.6
|
6.0
|
24
|
58
|
|
28
|
7.78
|
20.6
|
56
|
|
50-200(I) |
17.5
|
4.86
|
52.7
|
53
|
7.5
|
2900
|
2.5
|
113
|
|
25
|
6.94
|
50
|
60
|
|
32.5
|
9.03
|
45.5
|
58
|
|
50-200(I)A |
16.4
|
4.56
|
46.4
|
49
|
7.5
|
2900
|
2.5
|
111
|
|
23.5
|
6.53
|
44
|
58
|
|
30.5
|
8.47
|
40
|
54
|
|
50-200(I)B |
15.2
|
4.2
|
40
|
47
|
5.5
|
2900
|
2.5
|
104
|
|
21.8
|
6.06
|
38
|
55
|
|
28.3
|
7.86
|
34.5
|
51
|
|
50-250(I) |
17.5
|
4.86
|
82
|
49
|
15
|
2900
|
2.5
|
180
|
|
25
|
6.94
|
80
|
52
|
|
32.5
|
9.03
|
76.2
|
50
|
|
50-250(I)A |
16.4
|
4.56
|
71.5
|
45
|
11
|
2900
|
2.5
|
170
|
|
23.4
|
6.53
|
70
|
51
|
|
30.5
|
8.47
|
67
|
47
|
|
50-250(I)B |
15
|
4.17
|
61
|
38
|
11
|
2900
|
2.5
|
170
|
|
21.6
|
6.0
|
60
|
54
|
|
28
|
7.78
|
57.4
|
49
|
|
50-315(I) |
17.5
|
4.86
|
128
|
38
|
30
|
2900
|
2.5
|
313
|
|
25
|
6.94
|
125
|
44
|
|
32.5
|
9.03
|
122
|
40
|
|
50-315(I)A |
16.6
|
4.61
|
115
|
37
|
22
|
2900
|
2.5
|
247
|
|
23.7
|
6.58
|
113
|
43
|
|
31
|
8.6
|
112
|
40
|
|
50-315(I)B |
15.7
|
4.36
|
103
|
33
|
18.5
|
2900
|
2.5
|
217
|
|
22.5
|
6.25
|
101
|
39
|
|
29.2
|
8.1
|
98
|
37
|
|
65-100 |
17.5
|
4.86
|
13.7
|
67
|
1.5
|
2900
|
2.5
|
48
|
|
25
|
6.94
|
12.5
|
69
|
|
32.5
|
9.03
|
10.5
|
68
|
|
65-100A |
15.6
|
4.3
|
11
|
65
|
1.1
|
2900
|
2.5
|
42
|
|
22.3
|
6.19
|
10
|
68
|
|
29
|
8.1
|
8.4
|
67
|
|
65-125 |
17.6
|
4.86
|
21.5
|
61
|
3
|
2900
|
2.5
|
60
|
|
25
|
6.94
|
20
|
68
|
|
32.5
|
9.03
|
18
|
66
|
|
65-125A |
15.6
|
4.33
|
17
|
58
|
2.2
|
2900
|
2.5
|
51
|
|
22.3
|
6.19
|
16
|
66
|
|
29
|
8.1
|
14.4
|
65
|
|
65-160 |
17.5
|
4.86
|
34.4
|
54
|
4
|
2900
|
2.5
|
77
|
|
25
|
6.94
|
32
|
63
|
|
32.5
|
9.03
|
27.5
|
60
|
|
65-160A |
16.4
|
4.56
|
30
|
54
|
4
|
2900
|
2.5
|
76
|
|
23.4
|
6.5
|
28
|
62
|
|
30.4
|
8.44
|
24
|
59
|
|
65-160B |
15.0
|
4.17
|
26
|
51
|
3.0
|
2900
|
2.5
|
63
|
|
21.6
|
6.0
|
24
|
58
|
|
28
|
7.78
|
20.6
|
56
|
|
65-200 |
17.5
|
4.86
|
52.7
|
49
|
7.5
|
2900
|
2.5
|
110
|
|
25
|
6.94
|
50
|
60
|
|
32.5
|
9.03
|
42.5
|
58
|
|
65-200A |
16.4
|
4.56
|
46.4
|
48
|
7.5
|
2900
|
2.5
|
109
|
|
23.5
|
6.53
|
44
|
58
|
|
30.5
|
8.47
|
40
|
57
|
|
65-200B |
15.2
|
4.22
|
40
|
47
|
5.5
|
2900
|
2.5
|
101
|
|
21.8
|
6.06
|
38
|
55
|
|
28.3
|
7.86
|
34.5
|
51
|
|
65-250 |
17.5
|
4.86
|
82
|
39
|
15
|
2900
|
2.5
|
185
|
|
25
|
6.94
|
80
|
52
|
|
32.5
|
9.03
|
76.5
|
50
|
|
65-250A |
16.4
|
4.56
|
7.5
|
47
|
11
|
2900
|
2.5
|
173
|
|
23.5
|
6.5
|
70
|
51
|
|
30.5
|
8.47
|
67
|
48
|
|
65-250B |
15
|
4.17
|
61
|
43
|
11
|
2900
|
2.5
|
173
|
|
21.6
|
6.0
|
60
|
50
|
|
28
|
7.78
|
57.4
|
46
|
|
65-315 |
17.5
|
4.86
|
127
|
32
|
30
|
2900
|
2.5
|
325
|
|
25
|
6.94
|
125
|
42
|
|
32.5
|
9.03
|
122
|
40
|
|
65-315A |
16.6
|
4.61
|
115
|
31
|
22
|
2900
|
2.5
|
258
|
|
23.7
|
6.58
|
113
|
43
|
|
31
|
8.6
|
110
|
39
|
|
65-315B |
15.7
|
4.36
|
103
|
33
|
18.5
|
2900
|
2.5
|
229
|
|
22.5
|
6.25
|
101
|
39
|
|
29.2
|
8.1
|
98
|
37
|
|
65-100(I) |
35
|
9.72
|
13 .8
|
67
|
3.0
|
2900
|
3.0
|
65
|
|
50
|
13.9
|
12.6
|
73
|
|
65
|
18.1
|
10
|
70
|
|
65-100(I)A |
31.3
|
8.7
|
11
|
66
|
2.2
|
2900
|
3.0
|
54
|
|
44.7
|
12.4
|
10
|
72
|
|
58
|
16.1
|
8
|
69
|
|
65-125(I) |
35
|
9.72
|
22
|
67
|
5.5
|
2900
|
3.0
|
100
|
|
50
|
13.9
|
20
|
72.5
|
|
65
|
18.1
|
17
|
70
|
|
65-125(I)A |
31.3
|
8.7
|
17.5
|
66
|
4
|
2900
|
3.0
|
79
|
|
45
|
12.5
|
16
|
71
|
|
58
|
16.1
|
13.6
|
69
|
|
|
